The Xtreme STOL Series

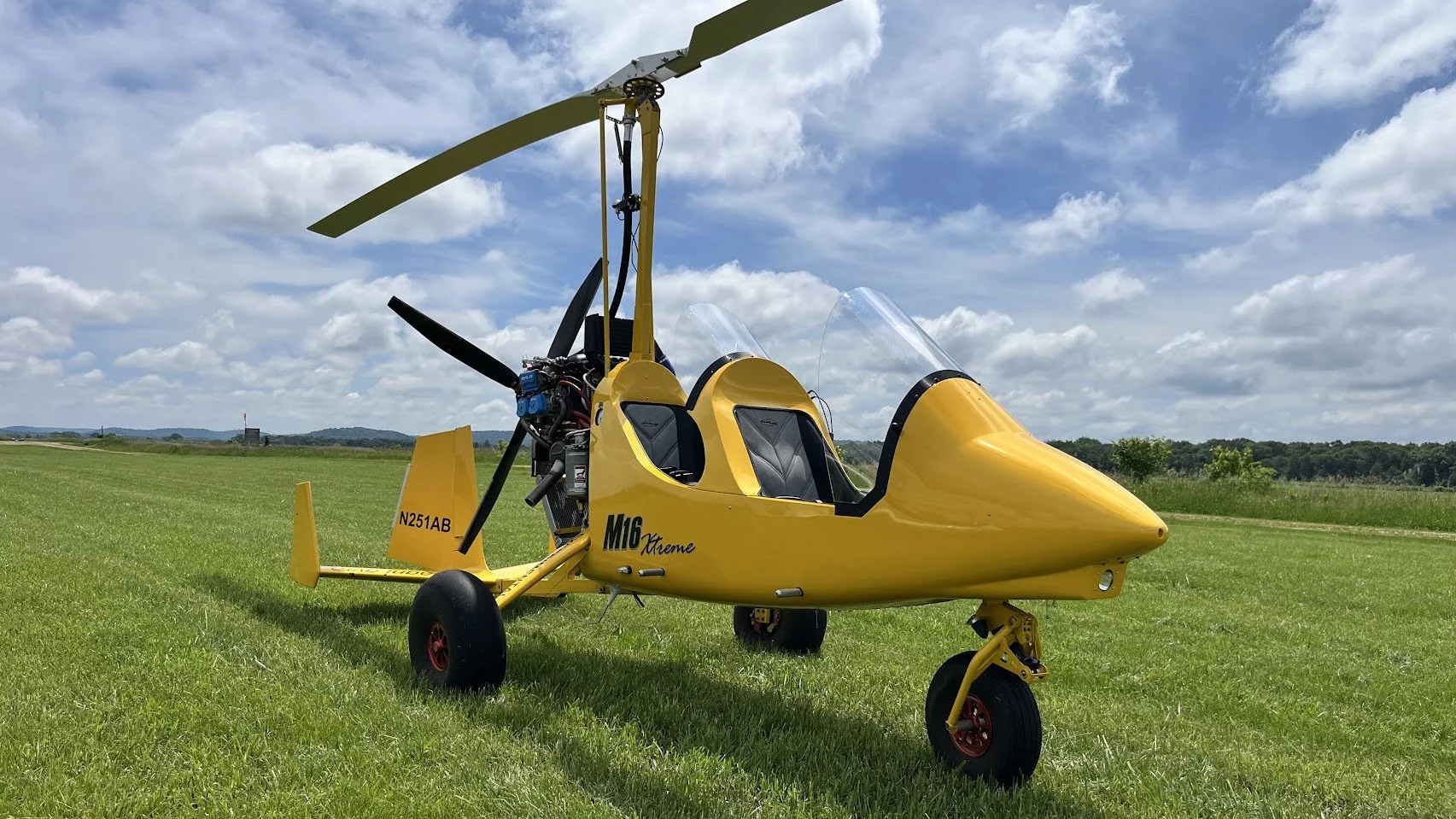

Yellow M16 gyroplane on grass field, blue sky with scattered clouds in background.

The xtreme stol series lineup:

Open air adventure with extremely short takeoff and landing rolls. Highly maneuverable, 360 degree visibility and dual controls for two pilots to enjoy the experience.

M16 Xtreme

  • Max Speed: 115 mph
    Cruise: 65 - 95 mph
    Rate of Climb: 1500 ft/min
    Takeoff Roll: 50 - 225 ft
    Landing Roll: 0 - 50 ft
    Max Crosswind: 25 knots
    Fuel Burn: 4.0 - 6.5 gph
    Range: 325 miles

  • Configuration: Tandem
    Doors: What doors?
    Rotor Diameter: 28 ft
    Height: 9 ft 3 in
    Length: 15 ft 6 in
    Width: 5 ft 10 in
    Engine: Rotax 915iS
    Empty Weight: 675 lbs
    Gross Weight: 1320 lbs
    Useful Load: 645 lbs
    Fuel Capacity: 19 gallons
    Baggage: 20 - 40 lbs
    Fuselage: Carbon Fiber
    Frame: 4130 Chromoly Steel
    Rotor: High Inertia Composite
    Propeller: DUC Flash 2 4 Blade
    Controls: Dual
    Wheels: Beringer
    Nose Gear: Fox Shocks Articulated
    Main Tires: Aero Classic Tundra 850

Build and Price

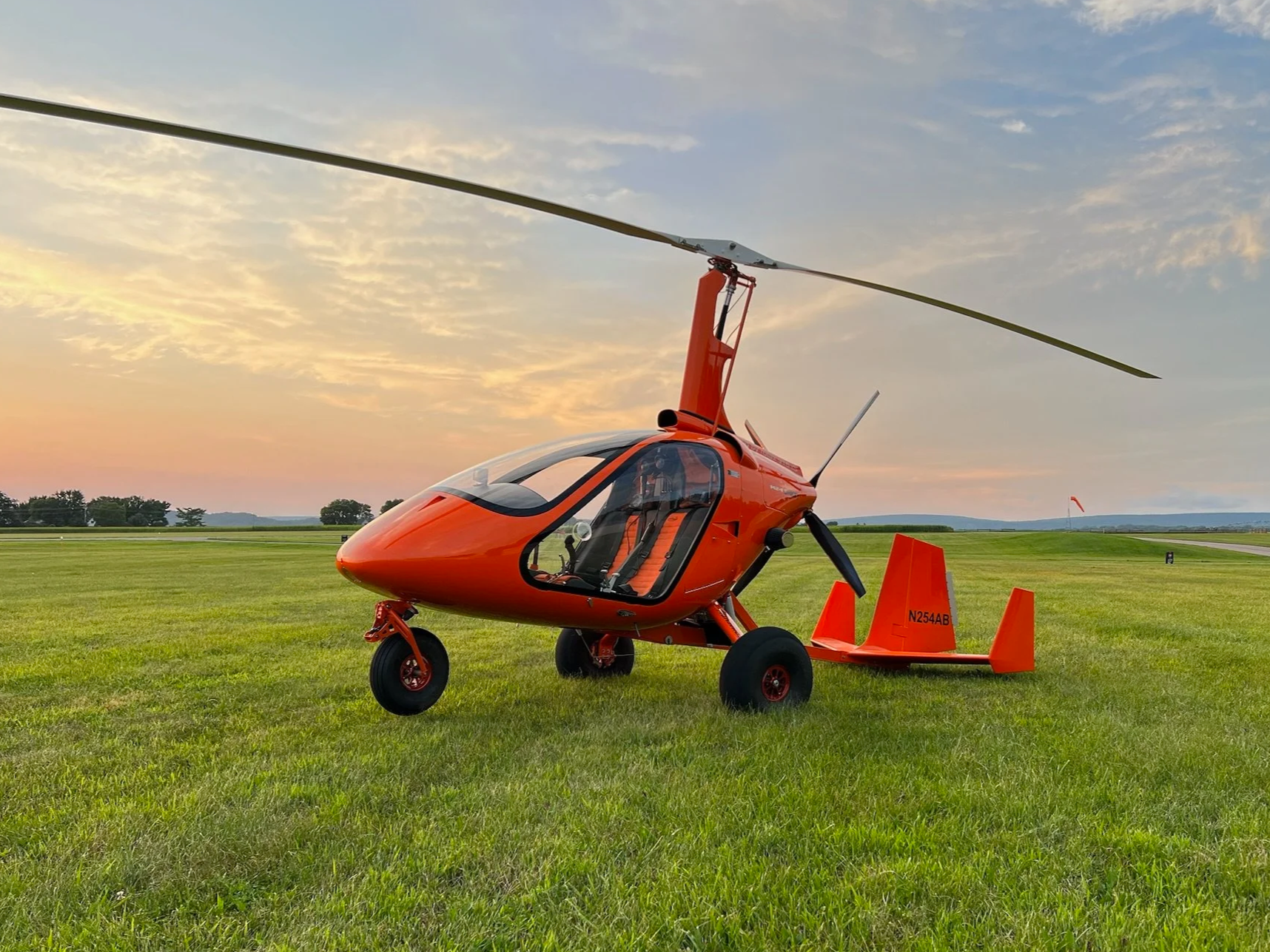

Orange M24 parked on a grassy airfield at sunset with open fields and a windsock in the background.

Side by side excitement ready for summer or winter - heat for cold days, doors off for hot days! Incredible visibility, rugged capabilities, modern design.

M24 Xtreme

  • Max Speed: 115 mph
    Cruise: 65 - 95 mph
    Rate of Climb: 1500 ft/min
    Takeoff Roll: 125 - 300 ft
    Landing Roll: 0 - 50 ft
    Max Crosswind: 25 knots
    Fuel Burn: 4.5 - 7.0 gph
    Range: 325 miles

  • Configuration: Side by Side
    Doors: Removable
    Rotor Diameter:     28 ft
    Height:     9 ft 3 in
    Length:     14 ft 6 in
    Width:     5 ft 10 in
    Engine:     Rotax 915iS or 916iS
    Empty Weight:     725 lbs
    Gross Weight:     1320 lbs
    Useful Load: 595 lbs
    Fuel Capacity:     21 gallons
    Baggage:     50 - 100 lbs
    Fuselage:     Carbon Fiber
    Frame:     4130 Chromoly Steel
    Rotor:     High Inertia Composite
    Propeller:     DUC Flash 2 4 or 5 Blade; Constant Speed Options
    Controls:     Dual
    Wheels:     Beringer
    Nose Gear: Fox Shocks Articulated
    Main Tires: Aero Classic Tundra 850

Build and Price
A blue M22 gyroplane parked on a dry, grassy field with hills in the background and a clear blue sky.

The open air feel of the M16 but without rear controls to get in the way of your passenger; add baggage space and you have the perfect traveling gyroplane.

M22 Xtreme

  • Max Speed: 115 mph
    Cruise: 65 - 95 mph
    Rate of Climb: 1500 ft/min
    Takeoff Roll: 50 - 225 ft
    Landing Roll: 0 - 50 ft
    Max Crosswind: 25 knots
    Fuel Burn: 4.0 - 6.5 gph
    Range: 350 miles

  • Configuration: Tandem
    Doors: Overkill…
    Rotor Diameter: 28 ft
    Height: 9 ft 3 in
    Length: 15 ft 6 in
    Width: 5 ft 10 in
    Engine: Rotax 915iS
    Empty Weight: 680 lbs
    Gross Weight: 1320 lbs
    Useful Load: 640 lbs
    Fuel Capacity: 21 gallons
    Baggage: 40 - 60 lbs
    Fuselage: Carbon Fiber
    Frame: 4130 Chromoly Steel
    Rotor: High Inertia Composite
    Propeller: DUC Flash 2 4 Blade
    Controls: Front Only
    Wheels: Beringer
    Nose Gear: Fox Shocks Articulated
    Main Tires: Aero Classic Tundra 850

Build and Price

Backcountry STOL Feature Guide

The design elements that make the Magni gyroplane the perfect tool for uncompromised safety and high adventure backcountry flying.
